Vector and raster images on analog oscilloscope.
Don't wanna be here? Send us removal request.
ebajous-curves · 2 months ago
Text
Tumblr media

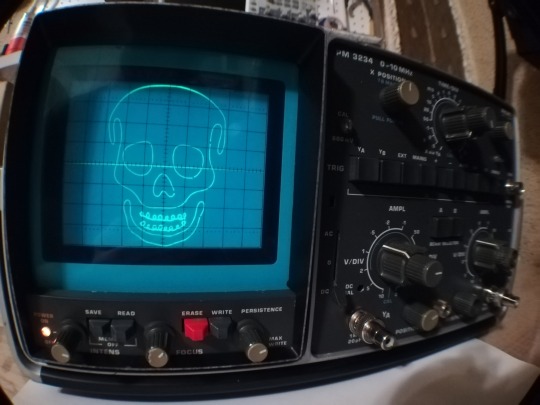

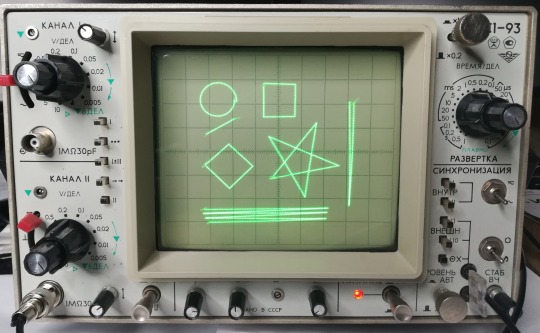

Trying my clip-on mobile wide angle lens
Fourier skull on wolfram alpha - link (not mine)
1 note · View note
ebajous-curves · 4 months ago
Text
Tumblr media Tumblr media

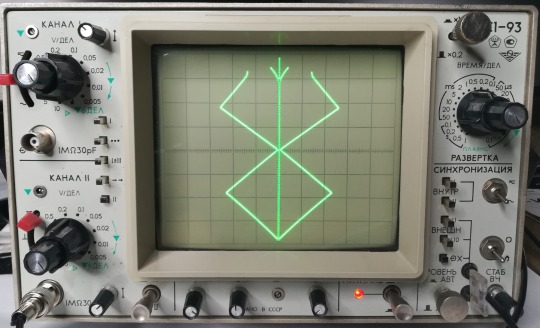

I wrote a crude parser for AsciiMath formulas to be able to get some Fourier series art from wolframalpha and draw them on oscillosope.
Here is the Konata Izumi-like curve :3 (not mine)
25 notes · View notes
ebajous-curves · 11 months ago
Text
DIY FT232 3 Channel R2R DAC
In previous post i mentioned some updates in hardware.
Here i show schematic and explain how it works:
Tumblr media Tumblr media
2 notes · View notes
ebajous-curves · 1 year ago
Text
Tumblr media Tumblr media Tumblr media

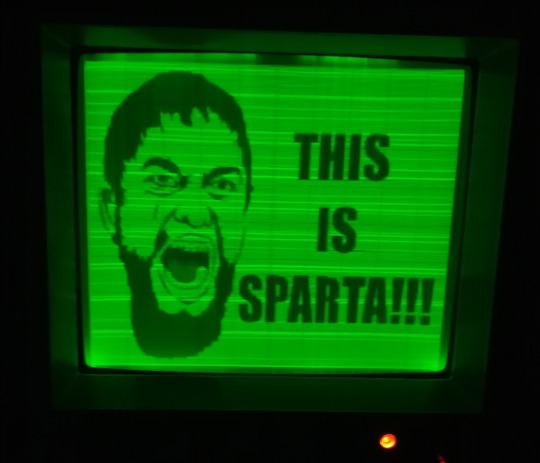

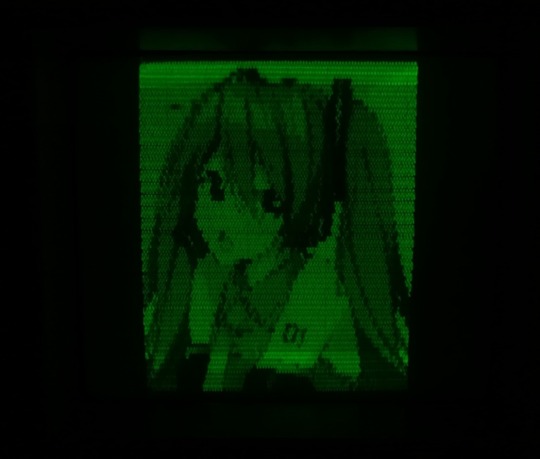

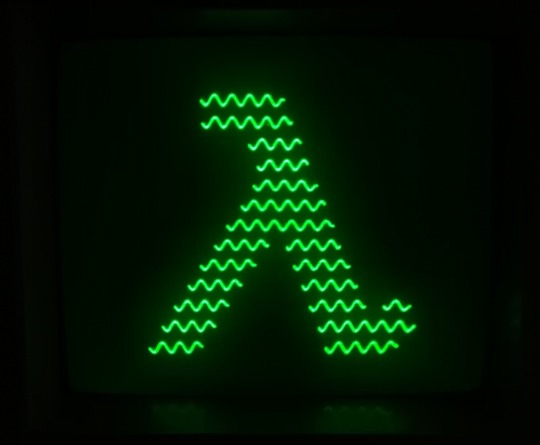

I recently updated hardware side of my DIY DAC, now it can output up to 6.66 million dots per second instead of about 1.5 million on previous version. Testing by drawing some memes using raster scan skipping black pixels passed successfully.
34 notes · View notes
ebajous-curves · 1 year ago
Text
Tumblr media Tumblr media
request
1 note · View note
ebajous-curves · 2 years ago
Tumblr media Tumblr media Tumblr media Tumblr media Tumblr media Tumblr media Tumblr media Tumblr media

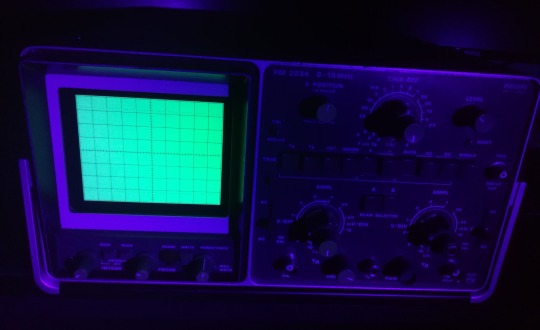

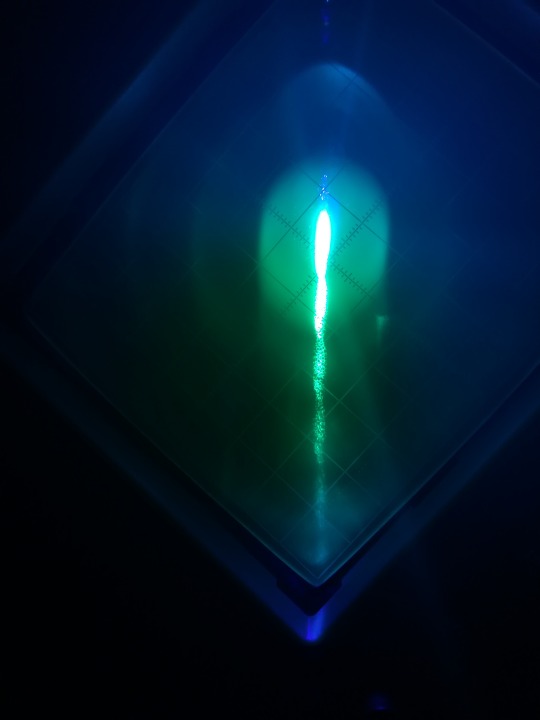

Just casting UV light on CRTs and stuff.
12 notes · View notes
ebajous-curves · 2 years ago
Tumblr media Tumblr media Tumblr media

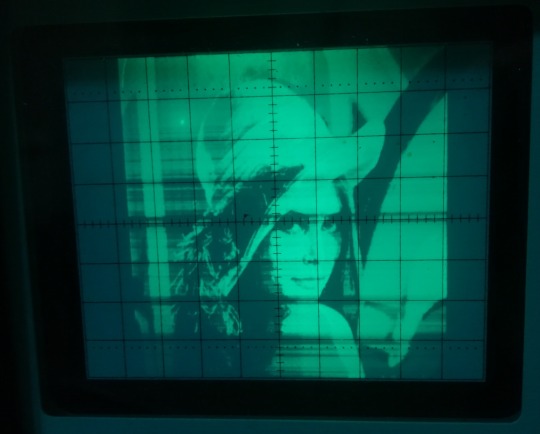

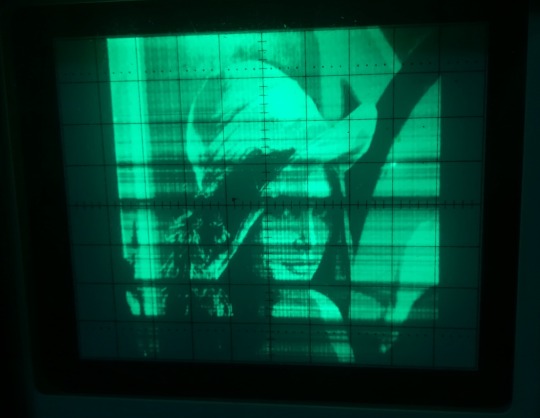

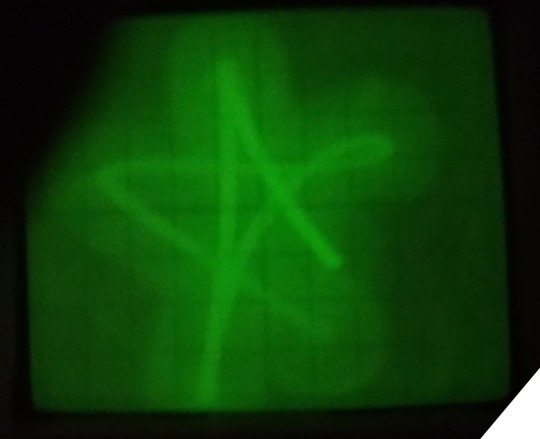

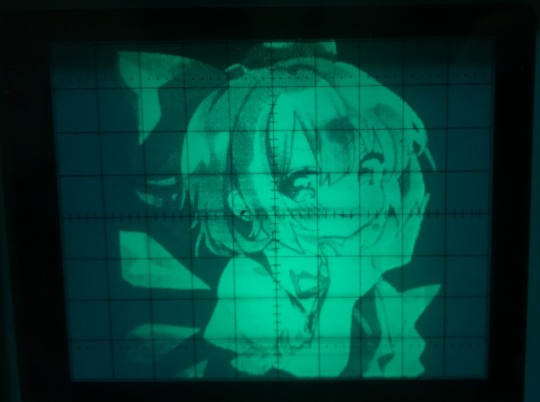

Trying to achieve shades of “gray” in storage mode. Some spots on the storage grid in CRT is very worn out so does not hold charge long enough.
3 notes · View notes
ebajous-curves · 2 years ago
Tumblr media
7 notes · View notes
ebajous-curves · 2 years ago
Tumblr media Tumblr media
youtube

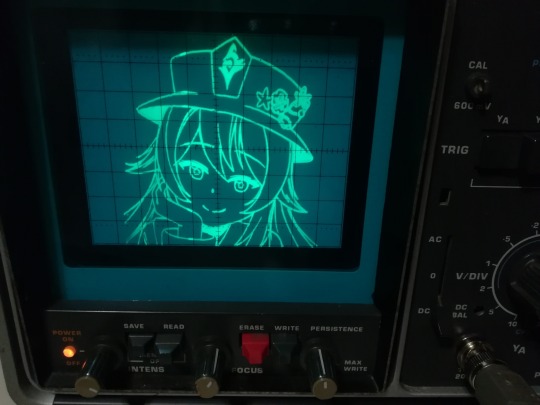

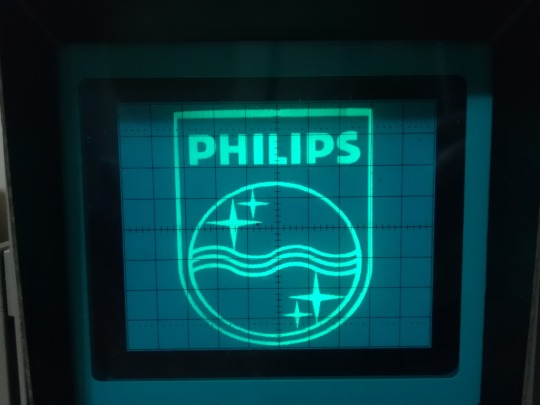

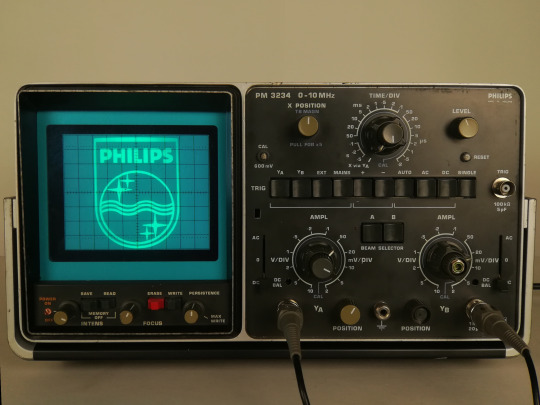

Playing with my Philips PM3234, fully analog dual beam oscilloscope with storage capabilities
4 notes · View notes
ebajous-curves · 2 years ago
Tumblr media Tumblr media

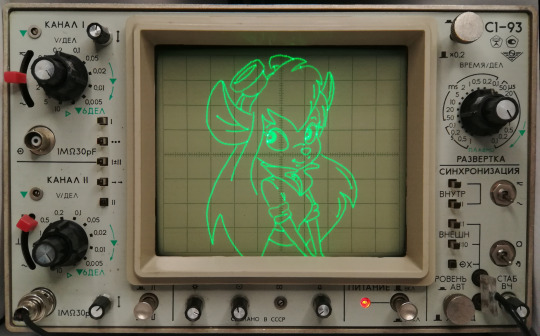

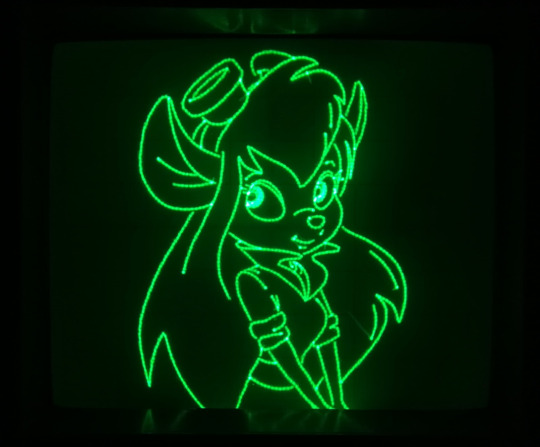

I bought x2 lens for my phone camera so the control knobs on oscilloscope look less stretched out on the photos. Tested it during shooting the beautiful Gadget Hackwrench. See also my DSLR optics test here.
(btw in CIS and ex-USSR we call her “Гаечка���, the soft form of ”Nut”. By the word Nut here i mean little hexagonal things screwed by a wrench)
8 notes · View notes
ebajous-curves · 2 years ago
Tumblr media Tumblr media Tumblr media
119 notes · View notes
ebajous-curves · 2 years ago
Tumblr media Tumblr media Tumblr media
I shot this about a year ago for some purpose. And never used it lol.
3 notes · View notes
ebajous-curves · 2 years ago
Tumblr media Tumblr media Tumblr media Tumblr media Tumblr media Tumblr media Tumblr media Tumblr media
Finaly figured out how to use digital filters and 4 channel audio in NAudio library. Drew something using two line outs on my soundcard.
To get best picture i used two filters - low shelf to boost low frequencies because they are cut by coupling capacitors at the output, and low pass filter based on impulse response and convolution to eliminate the Gibbs effect which can be seen as "hairy" ends of the lines. Last two photos demonstrating resulting picture with and without filters respectively.
4 channels is used because i also want to use beam brightness modulation (Z channel of oscilloscope)
27 notes · View notes
ebajous-curves · 3 years ago
Tumblr media Tumblr media

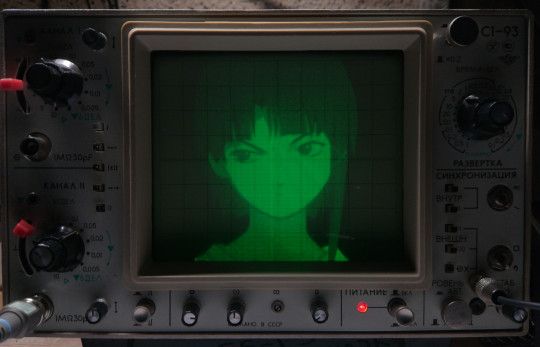

Lain Iwakura displayed using technique i described in previous post.
59 notes · View notes
ebajous-curves · 3 years ago
Tumblr media Tumblr media Tumblr media Tumblr media

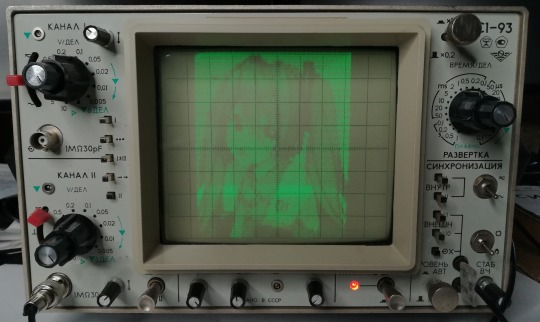

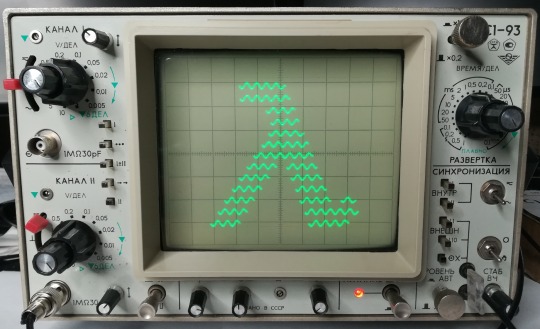

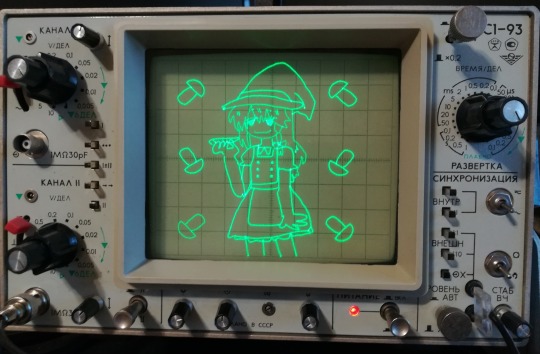

Some DSO stuff. This is done using VGA port, video mode 640x480@60. One of the VGA color channels outputing vertical sweep combined with blanking signal. Blanking signal moves the beam to the top (anywhere out of frame basically) when black pixel appears in the source picture, so the same spot on oscilloscope screen is also appears black since it is not lighten by the beam. The same technique will also work on analog oscilloscope.
Kirisame Marisa art by @yururi_nano
Tumblr media
And this is how it looks with so-called Digital phosphor on Rigol DS1202Z-E.
11 notes · View notes
ebajous-curves · 3 years ago
Tumblr media Tumblr media

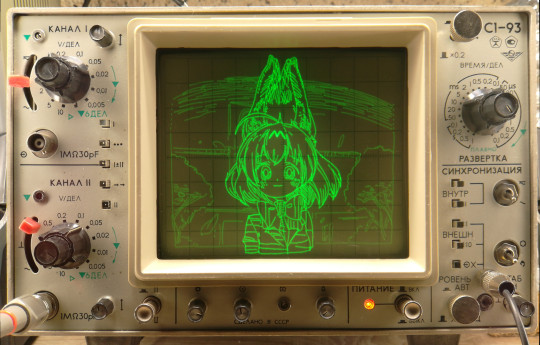

Trying to achieve smooth light using some lamps and A4 paper. This is how i do it for vector images since mid 2021. Works acceptable.
Post with Saya here - click
10 notes · View notes
ebajous-curves · 3 years ago
Video
youtube
I noticed that old devices such as VHS players and cameras have AC coupled composite output, but modern Smart TV boxes or DVB-T2 TV tuners are outputing composite video as is, with its DC component, so the sync pulses are at zero level and brightness is not affected.
