Plasma Machine (4710) - Tradeweld MCOW4082B CUT 40K Inverter

Manufactured to the highest standards using cutting edge PWM & Mosfet Technology. • DC current output • Suitable Cutting Mild, Stainless, Aluminium, Brass & Copper • Built in water trap • Excellent Cutting Characteristics • Less power consumption • Robust construction • Industrial • Built in compressor Technical Specifications 4710 TH Machine Tools

[thmachiningtools]

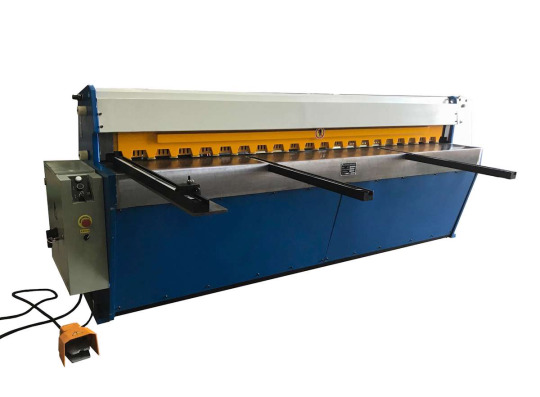

Guillotine QH11D 3.2 x 2500 Motorised (542)

Type: Truecut Cutting Capacity: 3.2 x 2500mm Cutting angle: 1°20' Strokes p/min: 47 Strokes p/min on single: 10 Backgauge: 0-650mm Table height: 800mm Motor power: 7.5kW Overall dimensions: 3124 x 2210 x 1180mm Weight: 2100kg TH MACHINE TOOLS

[thmachiningtools]

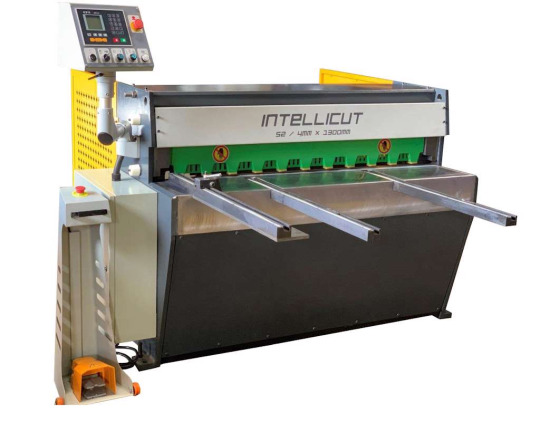

Guillotine IntelliCut Series 1 - 4 x 1300 Motorised (9115)

IntelliFab delivers quality you can trust and bending performance you can rely on. Our new motorized guillotines are designed to deliver fast, accurate cutting with robust build quality and great features. -Programable Estun E21-S control with 40 programs, 25 steps per program -Electrics: Schneider -Motor: Brake motor -Backstops: automatic, motorized running on ball screws with 0.1mm accuracy -Blade gap: Manual adjustment -Foot pedal: Heavy duty with emergency stop -Material support: Side squaring arm and front supports with Flip over stops and squaring discs -Material handling: Heavy duty front table with hold Down -Material ejection: rear slider plates for material -Movement: Single and continues stroke -Guarantee: 6 months parts and labour, see terms and conditions of sale. Read More

[thmachiningtools]

Eccentric Presses SMAC MP-6.3 (J23-6.3A) Eccentric C-Frame Press (8907)

Eccentric Presses

Read more

[thmachiningtools]

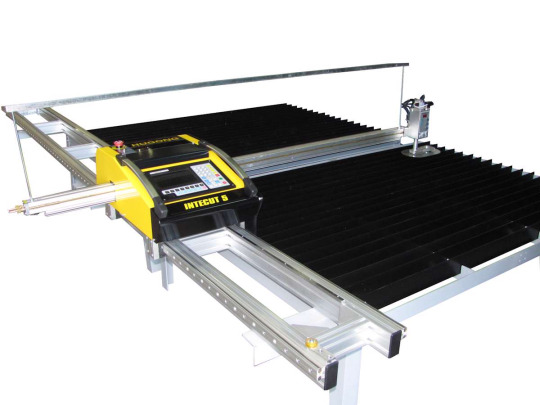

CNC Plasma Machine (5485) - HG Hugong Intecut 5 - 1500x3000

CNC Plasma Machine (5485)

Standard Features: Compact precision linear guide rail with cantilever arm Special torch holder designed for quick changeover from flame to plasma cutting torch Flame torch gas hoses protected by metal housing 3 x Solenoid valves for easy flame fire adjustment from CNC Control Automatic torch height controller on Z axis X and Y axis driven by stepper motors

CNC Control Features: HG612 7" display with recovery, memory, shape library, kerf compensation, off-shore setting etc. Safety alarm for soft and hard limits USB port for importing and exporting files DXF and DWG importing with FastCAM

[thmachiningtools]

Bandsaw - TH Machine Tools

A band saw consists out of a continues toothed metal blade tensioned between two wheels, one motor driven wheel and one idler wheel. Band saws are used to cut a variety of materials including wood, metal, plastic, etc. Band saw works at very low revolutions per minute combined with coolant to ensure accurate cutting, quiet operation and spark free environment, A cold saw, also known as a circular saw, also operates at low revolutions per minute to transfer the heat to the chips created by the cutting procedure. This allows the material and the blade to remain cool. A cold saw uses a round toothed steel blade.

[thmachiningtools]

THMachineTools Lathe Machine Collection

A lathe is a machine that rotates or turns a workpiece clamped in a chuck to perform tasks like cutting, facing, knurling and parting by making use of a cutting tool that advances into the workpiece to shape a cylindrical object. Lathes are used in different industries including woodturning, metal turning, metal spinning, pottery, glass work etc. There are three main types of lathes, namely: engine lathes, turret lathes and special application lathes. Engine lathes can be adapted for different operations in a conventional turning environment, while turret lathes and special application lathes are mostly used in production environments.

THMT C6251 1500b/c Centre Lathe

(657)

swing Ø 510, gap Ø 738, bore Ø 80, 7.5kW

Rand excl.

View

GHK-1660 Centre Lathe

(5875)

1500b/c, swing Ø400, gap Ø 650 bore Ø52, 5.5kW

Rrand excl.

View

Yunnan CY-L1660Gx1500 Centre Lathe

(9044)

1500b/c, swing Ø 410, bore Ø 52, 5.5kW

Rand excl.

View

THMT C0636D 1000b/c Centre Lathe

(1450)

swing Ø360, bore Ø38

Rand excl.

View

THMT CM6241 1000b/c Centre Lathe

(251)

swing Ø410, gap Ø580, bore Ø52

POA

View

THMT FC290V/700 Centre Lathe

(4230)

700b/c, swing Ø290, bore Ø38, Variable Speed

POA

View

THMT C6266A x 3000 Centre Lathe

(660)

3000b/c, swing Ø660, gap Ø900, bore Ø105

POA

View

THMT C6266A x 2000 Centre Lathe

(659)

2000b/c, swing Ø660, gap Ø900, bore Ø105

POA

View

THMT C6256 2000b/c Centre Lathe

(658)

swing Ø 560, gap Ø 788, bore Ø 80, 7.5kW

POA

View

THMT CM6241 1500b/c Centre Lathe

(529)

swing Ø410, gap Ø580, bore Ø52

POA

View

THMT C0636N 1000b/c Centre Lathe

(6450)

swing Ø360, bore Ø52

POA

View

THMT CQ0625V/750 Centre Lathe

(1214)

750b/c; swing Ø250; bore Ø26; Variable Speed

POA

View

THMT C6266A Heavy Duty Series Centre Lathe

(10025)

1500 - 3000mm b/c, Swing Ø 660mm

POA

View

THMT CW62103C - CW62183C Heavy Duty Series Centr ...

(10024)

1500 - 6000mm b/c, Swing Ø 1030-1830mm

POA

View

THMT CW6163C / CW6183C / CW6193C Heavy Duty Seri ...

(10023)

1000 - 6000mm b/c, Swing Ø 630 / 830 / 930mm

POA

View

explore Site

Home

New Machines

Lathes

[thmachiningtools]

We specialize in used, reconditioned and new fabrication, manufacturing and engineering machines, including press brakes, guillotines, plate rolls, metal workers, lathes, milling machines, drilling machines, bandsaws, CNC plasma cutters, CNC machining centres, CNC turning centres and much more.

[thmachiningtools]

Erlo TCA 32 Geared Head Drilling Machine (9853)

Availability: In Stock (To be confirmed)Price: R 36 000.00 excl.

Specification

T & C's

Delivery

Financing

Auto spindle down feedCoolant pumpMT4 SpindleBed 530x450

Geared head drill

[thmachiningtools]

Sugino Selfeeder ESD-WP 24035 Belt Drilling Machine (7614)

Availability: In Stock (To be confirmed)Price: R 7 300.00 excl.

Specification

T & C's

Delivery

Financing

MT2PedestalStroke 120mm

Geared head drill

[thmachiningtools]

THMT Z3040x10 Radial-Arm Drilling Machine (541)

Availability: In Stock (To be confirmed)Price: R 128 000.00 excl.

Specification

T & C's

Delivery

Financing

THMT Z3040 x 10Max spindle to pillar distance: 1000mmMax drilling capacity: 40mmSpindle: MT4Number of spindle speeds: 8Range of spindle speeds: 71-1800 r/minNumber of feed speeds: 4Range of feed speeds: 0.3-0.54 mm/rSpeed of arm elevating: 1.13 m/minSwing of arm: 360 degreesBed size: 400 x 450 x 400mmMax feeding power of spindle allowed: 10kNMain motor power: 2.2kWArm elevating motor power: 0.75kWCooling motor power: 0.09kWDimensions: 1500 x 705 x 2200mmWeight: 1400kg

Geared head drill

[thmachiningtools]

THMT Z5040A Geared Head Drilling Machine (157)

Availability: Ex-importPrice: R 74 100.00 excl.

Specification

T & C's

Delivery

Financing

Specifications:Max Ø Drilling: 40mmMax Ø Tapping: M27Throat: 360mmDaylight - table: 600mmDaylight - base: 1215mmUp-down table feed motorSpindle travel: 180mmWork table swivel: ±45°Taper of spindle bore: 4 MorseSpindle speed steps: 12 stepsSpindle speed range: 42, 62, 85, 125, 170, 250, 340, 510, 690, 1035, 1365, 2050 r/minSpindle feed steps: 4 stepsSpindle feed range: 0.07, 0.15, 0.26, 0.40 mm/rColumn Ø: 160mmEffective working area of table: 510x380mmEffective working area of base: 460x450mmWork table and base T-slot: 2-16 mm3-phase 2-speed AC Motor: 2.2/2.8kW, 380V, 960/1450 r/min3-phase electrical pump: 0.085kW, 380V, flow rate = 6 L/minElectromagnetic clutch: 0.024kW, 24VMachine dimension(LxWxH): 980x650x2300mmMachine Weight: 800 Kg

Standard features:Geared HeadAuto feedForward reverse tapping functionMotorised bed up-downDigital displayCoolant pumpWork light

Standard Accessories:Halogen lamp,Drill chuck, Reduction Sleeves, Arbor, Spanners

Geared head drill

[thmachiningtools]

THMT Z5035A Geared Head Drilling Machine (38)

Availability: Ex-importPrice: R 57 130.00 excl.

Specification

T & C's

Delivery

Financing

Specifications:Max Ø Drilling: 35mmMax Ø tapping: M24Throat: 330mmDaylight - table: 610mmDaylight - base: 1150mmSpindle travel: 150mmWork table swivel: ±45°Taper of spindle bore: 4 MorseSpindle speed steps: 12 stepsSpindle speed range: 70, 105, 150, 225, 310, 390, 480, 600, 850, 1250, 1700, 2600 r/minSpindle feed steps: 3 stepsSpindle feed range: 0.01, 0.2, 0.3 mm/rColumn Ø: 140mmEffective working area of table: 420x420mmEffective working area of base: 420x380mmWork table and base T-slot: 2-14, 2-16 mm3-phase 2-speed AC Motor: 0.85/1.5kW, 380V, 960/1450 r/min3-phase electrical pump: 0.085kW, 380V, flow rate = 6 L/minElectromagnetic clutch: 0.024kW, 24VMachine dimension(LxWxH): 950x570x2220mmMachine Weight: 730 Kg

Standard features:Geared HeadAuto feedForward reverse tapping functionCoolant pumpWork light

Standard AccessoriesHalogen lamp,Drill chuck, Reduction Sleeves, Arbor, Spanners

Geared head drill

[thmachiningtools]

Z5045C Geared Head Drilling Machine (9863)

Availability: In Stock (To be confirmed)Price: R 45 900.00 excl.

Specification

T & C's

Delivery

Financing

Spindle: MT4Drilling capacity: 40mmSpindle Auto down feedXY BedX rapid feedMain motor: 1.5kWCoolant system

Geared head drill

[thmachiningtools]

THMT ZS32H Geared Head Drilling Machine (9964)

Availability: Ex-importPrice: R 31 630.00 excl.

Specification

T & C's

Delivery

Financing

Max drilling capacity: 31.5mmSpindle Taper: MT3Dimension of base: 650x450mmSpindle Speed: 75-1600rpm (50Hz)Distance of Spindle axis to column: 297.5mmWork table size: 500x460mmSpindle travel: 120mmMotor Power: 1.5kWColumn Ø: 115mmMax. Dist. spindle nose to worktable: 715mmMax. Dist. Spindle nose to base: 1180mmDimensions: 730x760x1870mmWeight: 335x365kg

Geared head drill

[thmachiningtools]

Rotabroach ELEMENT40 Magnetic Drilling Machine (5396)

Availability: In Stock (To be confirmed)Price: R 19 236.99 excl.

Specification

Downloads

T & C's

Delivery

Financing

Model Number: Element 40Motor Specification: 230V 1200WNo Load RPM Low Gear: 300 RPM / High Gear: 600 RPMMax Hole Cutting Capacity: ø40 x 50mm deepDrill Chuck Capacity: ø13mmOverall Dimensions: Height: 510mm / Width: 185mm with Capstan / Length: 285mm with GuardMachine Weight: 13.65kgMagnetic Adhesion: 10,000NMagnet Size: 180mm x 90mmSafety Features: Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch

Geared head drill

[thmachiningtools]

Rexon DP-430F RPDM25/220C Belt Drilling Machine (930)

Availability: In Stock (To be confirmed)Price: R 10 614.03 excl.

Specification

T & C's

Delivery

Financing

Drilling capacity 25mmSpindle MT3Spindle Speed 210-2500Spindle Travel 85mmThroat 168mmMotor 850W 220VWeight: 71.5kgDimensions (LxWxH): 800mm x 390mm x 1630mm

Geared head drill
