XYZ Cartesian Robots Will Be Ready for Delivery to Germany

XYZ Cartesian Robots from Tallman Robotics Limited will be delivered to Germany.

XYZ Cartesian Robots are automated machines that are used in industry to carry out repetitive tasks. XYZ have three axes of movement and can be programmed to carry out precise, repetitive motions. They are widely used in production, assembly and packaging in many industries. XYZ Gantry Robots,which are motorized robots used for industrial automation and material handling applications. They are usually mounted on a linear rail system and can move, lift, and manipulate loads in a three-dimensional space. Gantry Robots are especially well-suited to applications that require high payloads and repeatable accuracy. You are welcome to  https://www.youtube.com/@tallmanrobotics to watch our video centre for more projects or visit our website to check other series or load down e-catalogues for further technical data. Read the full article

[tallman-robotics]

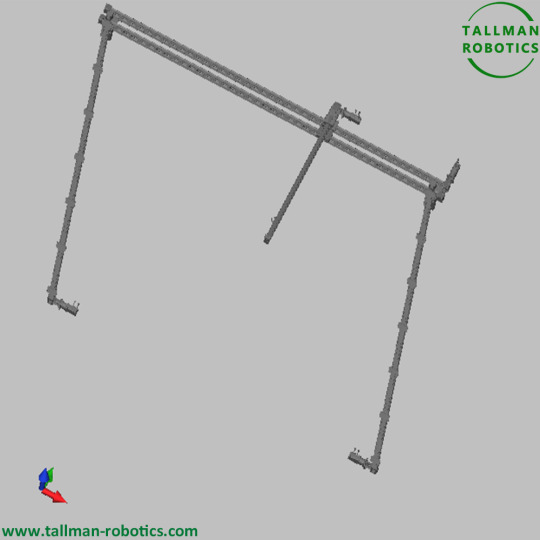

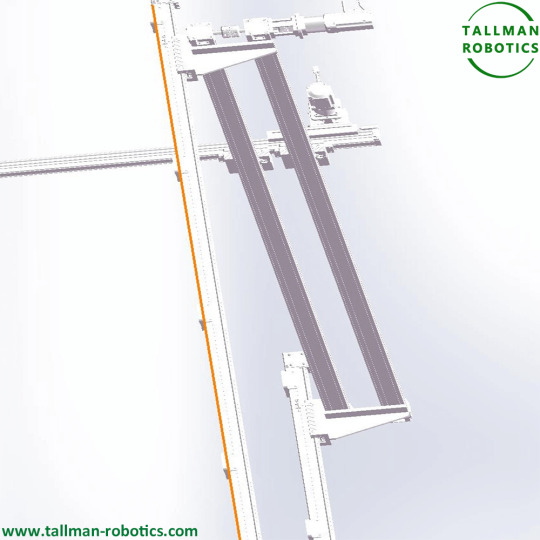

XYZ Linear Gantry Robots will be Delivered to Italy

XYZ Linear Gantry Robots from Tallman Robotics will be finished for client from Italy. We got client's techical data as follows:

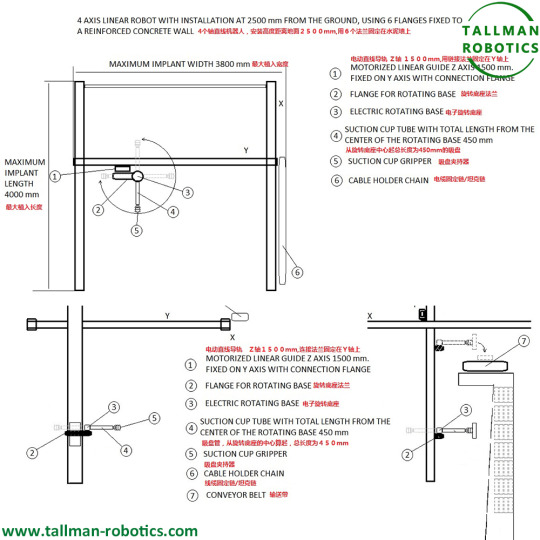

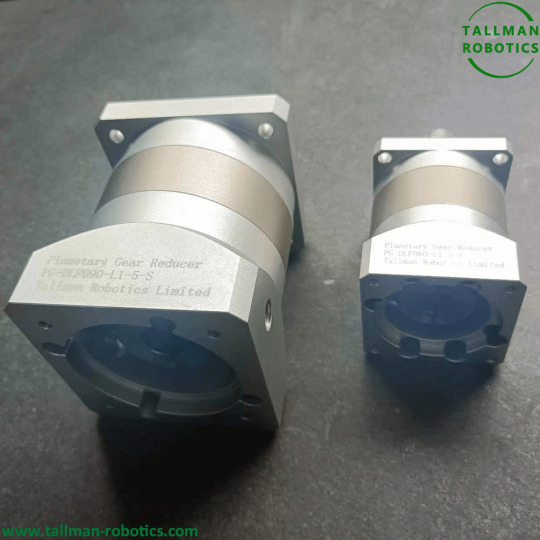

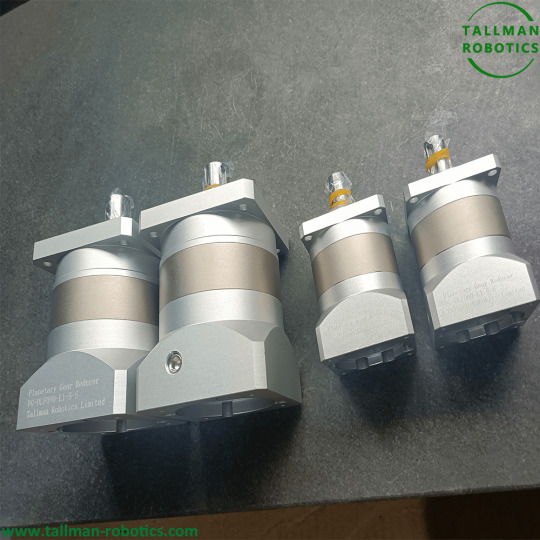

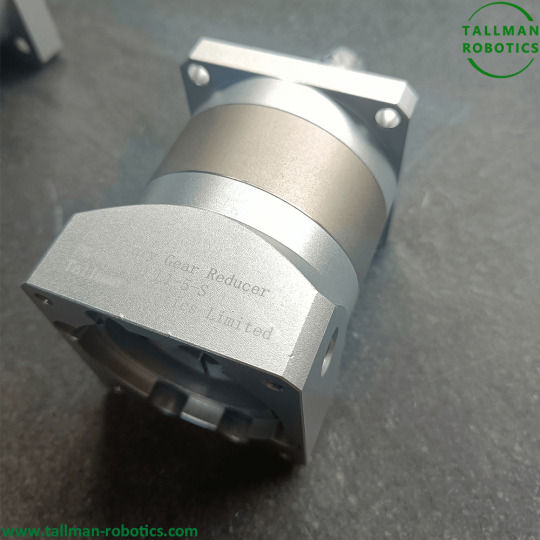

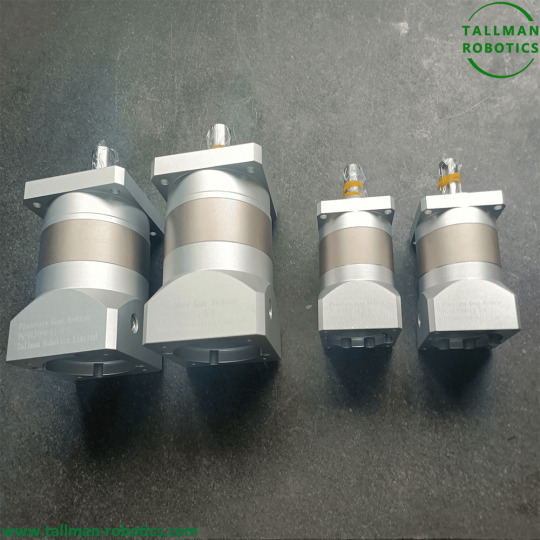

The system of XYZ Linear Gantry Robots will have to work at low speeds and light gripping load, so no particular performance is required with this Gantry Robots . Description: CARTESIAN ROBOT XYZ - Belt transmission Type of configuration: -P&P AXES X, Y and Z. -Gripper with suction cups. -Motorized rotary actuator. -Planetary gearboxes. -Motorization package with Brushless servomotors with Profinet control. -Portal capacity: 5 Kg; -Environment: clean; - Positiioning repeatability: 0,2 mm Max; -Speed: 1 Meter/Second Work Strokes: X axis: 3600mm Y axis: 3400mm Z axis: 1500mm Configuration: Double X axis complete with synchronization shaft. Y axis equipped with interface plates for mounting on X axis. Z axis equipped with interface plates for mounting on Y axis. Rotary actuator equipped with interface plates for mounting on Z axis. Gripper with suction cup equipped with interface plates for mounting on rotary actuator. Material Required for the Structure: Qty: 02 - Belt linear unit - stroke 3600mm. . Qty: 01 - Belt linear unit - stroke 3400mm. . Qty: 01 - Belt linear unit - stroke 1500mm. . Qty: 01 - Axis interface flange kit. Qty: 01 - Synchronization shaft kit with extension and couplings. Qty: 04 - Reducer interface bell. Qty: 03 - Set of cable chains with separators, complete with supports. Qty: 10 - M12 proximity sensors complete with brackets. Qty: 01 - Motorized rotary actuator. Qty: 01 - Gripper with suction cups complete with vacuum pump and vacuum switch. Motorization with 240V brushless servo motors with Profinet command Consisting of: • Qty: 03 XY servomotor • Qty: 01 Servomotor with Z brake • Qty: 01 PLC or Controller • Qty: 04 Drive / Drive - Profinet command. • Qty: 04 Cable Kit L = 10mt. • Qty: 04 Planetary gearboxes. I would need a rough estimate on this XYZ Linear Gantry Robots, so we can then deepen the details for the supply. Thank you. We design solution to this XYZ Linear Gantry Robots as follows and will provide XYZ Linear Gantry Robots Modules, Planetary Gear Reducer:

You are welcome to visit our download centre to check E-catalogues or watch our video centre to check more projects of XYZ Linear Gantry Robots. Read the full article

[tallman-robotics]

Multi Axis Cartesian Robots

Multi Axis Cartesian Robots refers to the combined application range of XYZ axis cantilever rectangular coordinate manipulator (with or without auxiliary rail). You are welcome to visit our download centre to check E-catalogues or watch our video centre to check more projects.

                Combination of XYZ axis cantilever rectangular coordinate manipulator of multi axis cartesian robots:  Y-axis base is fixed, and X/Z axis moves with  Y-axis slide, and the working range is XYZ plane; Z-axis sliding seat is fixed on X-axis sliding seat, and Z-axis body moves up and down; Applicable to XYZ three-dimensional workpiece handling, transfer, walking track and other applications. It is one of the simplest structures for left-right, up and down, forward and backward moving transportation and grasping. Compared with the gantry structure, it is much cheaper. This structure is stable and better. If the effective travel of X axis is too long, it is recommended to build a gantry structure with auxiliary guide rail, auxiliary axis or complete gantry structure. Read the full article
