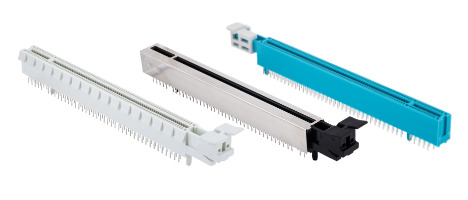

HOYATO PCIe: Features and Benefits

Superior Signal Integrity: HOYATO PCIe Connectors and Cable Jumper Assemblies are designed to handle high-speed signal transmission with exceptional performance. By providing a direct signal path from point A to point B, these solutions avoid the complexities and potential signal degradation associated with PCB traces, ensuring superior signal integrity even at higher frequencies.

Optimized for Advanced CPU Connectivity: Our PCIe Connectors are tailored to meet the needs of modern computing environments where increased connectivity is essential. Designed with high density and minimal footprint, these connectors maximize routing flexibility within servers and storage hardware, enabling users to fully exploit the capabilities of next-generation CPUs.

Compact and Low-Profile Design: HOYATO PCIe Connectors feature a compact, low-profile design that reduces their impact on system thermal performance. This design choice not only helps in conserving valuable space but also supports efficient cooling, ensuring that the system maintains optimal performance and reliability.

PCIe Gen-5 Ready: Our PCIe Connector System and Cable Jumper Assemblies are specifically engineered to support PCIe Gen-5 standards. From the initial design phase, we have focused on meeting the precise pinout and signal integrity requirements of the latest PCIe specifications, providing a reliable solution for next-generation system implementations.

In summary, HOYATO PCIe solutions offer exceptional signal integrity, compact design, and robust support for PCIe Gen-5, addressing the demands of advanced computing systems and ensuring high performance and connectivity.

[flora-819]

Are PCIe SSDs Worth It? Exploring the Advantages and Considerations

In the rapidly advancing world of technology, storage solutions have seen remarkable developments. Among these, PCIe SSDs (Peripheral Component Interconnect Express Solid State Drives) have emerged as a leading choice for high-performance computing. But are PCIe SSDs truly worth the investment? This article explores the benefits, considerations, and technological aspects of PCIe SSDs, focusing on the role of the card edge connector and how it impacts performance.

What is a PCIe SSD?

A PCIe SSD is a storage device that leverages the PCIe interface to connect to a computer’s motherboard. PCIe is a high-speed data transfer standard used for connecting various hardware components. Unlike SATA SSDs, which use the older Serial ATA interface, PCIe SSDs are designed to take advantage of the increased bandwidth and lower latency offered by PCIe slots.

The Role of the Card Edge Connector

At the heart of PCIe SSDs is the card edge connector, a crucial component that facilitates the physical and electrical connection between the SSD and the motherboard. This connector allows PCIe SSDs to interface with the PCIe slots on the motherboard, enabling high-speed data transfer.

The card edge connector is responsible for aligning the pins of the PCIe SSD with the corresponding connectors on the motherboard. It ensures stable electrical connections and secure physical attachment, which are essential for the reliable operation of high-speed SSDs. The design and quality of the card edge connector play a significant role in the overall performance and longevity of PCIe SSDs.

Advantages of PCIe SSDs

1. Superior Speed and Performance

One of the most compelling reasons to consider a PCIe SSD is its superior speed compared to other storage solutions. PCIe SSDs can achieve read and write speeds several times faster than SATA SSDs and traditional hard drives. While SATA SSDs typically offer speeds up to 550 MB/s, PCIe SSDs can reach speeds of over 3,000 MB/s, with high-end models surpassing 7,000 MB/s.

This performance boost is made possible by the PCIe interface, which provides multiple lanes for data transfer. Each lane can handle a significant amount of data simultaneously, resulting in faster read and write operations. For tasks such as booting up your system, loading applications, and transferring large files, PCIe SSDs offer a noticeable improvement in speed and responsiveness.

2. Enhanced Multitasking and Productivity

For users who engage in resource-intensive tasks such as video editing, 3D rendering, or software development, PCIe SSDs offer a significant advantage. Their high-speed performance allows for quick access to large files and faster execution of applications. This translates to improved multitasking capabilities and reduced waiting times.

With a PCIe SSD, you can experience smoother transitions between tasks and faster application launches. This enhancement in productivity is especially valuable for professionals who rely on quick data access and system responsiveness to meet tight deadlines.

3. Reduced Latency

Latency refers to the delay between a request for data and the time it takes to access that data. PCIe SSDs excel in reducing latency compared to traditional storage solutions. The PCIe interface minimizes the time required for data to travel between the SSD and the CPU, leading to quicker data retrieval and overall system responsiveness.

Reduced latency is particularly beneficial for applications that require real-time data processing, such as gaming, virtual reality, and high-frequency trading. By lowering latency, PCIe SSDs contribute to a more seamless and immersive experience in these scenarios.

4. Improved Durability and Reliability

PCIe SSDs inherit the durability and reliability benefits of solid-state technology. Unlike traditional hard drives with moving parts, PCIe SSDs have no mechanical components. This absence of moving parts makes PCIe SSDs more resistant to physical shock and wear, leading to greater reliability and longevity.

Furthermore, PCIe SSDs are less susceptible to mechanical failures compared to hard drives, which are prone to issues such as disk crashes and read/write head failures. For users who require dependable storage solutions, PCIe SSDs offer a robust and resilient option.

5. Future-Proofing Your System

As software and technology continue to evolve, the demand for faster storage solutions is increasing. Investing in a PCIe SSD helps future-proof your system by providing the high-speed performance needed to keep up with advancements in technology. PCIe SSDs are designed to handle the growing requirements of modern applications and games, ensuring that your system remains competitive for years to come.

Comparing PCIe SSDs to Other Storage Solutions

PCIe SSDs vs. SATA SSDs

While both PCIe and SATA SSDs offer significant advantages over traditional hard drives, PCIe SSDs are generally superior in terms of speed and performance. SATA SSDs, which use the older SATA interface, have maximum transfer rates around 550 MB/s. In contrast, PCIe SSDs can achieve speeds exceeding 3,000 MB/s due to the higher bandwidth provided by the PCIe interface.

However, SATA SSDs are often more affordable than PCIe SSDs. For users with less demanding storage needs or those on a tighter budget, SATA SSDs can still provide a noticeable improvement in performance over hard drives.

PCIe SSDs vs. NVMe SSDs

NVMe (Non-Volatile Memory Express) is a protocol designed to optimize the performance of SSDs over the PCIe interface. NVMe SSDs are a subset of PCIe SSDs and offer even higher speeds and lower latency compared to non-NVMe PCIe SSDs. The NVMe protocol reduces overhead and improves data transfer efficiency, making it the preferred choice for high-performance storage solutions.

When comparing PCIe SSDs, it’s important to consider whether they use the NVMe protocol. NVMe SSDs offer the best possible performance by leveraging the full capabilities of the PCIe interface.

PCIe SSDs vs. HDDs

Compared to traditional hard drives, PCIe SSDs provide a dramatic performance improvement. Hard drives, which rely on spinning disks and mechanical parts, have much slower read and write speeds and higher latency. PCIe SSDs, with their solid-state technology and high-speed interface, offer faster data access and overall system performance.

For users who require speed and efficiency, PCIe SSDs are a clear choice over hard drives. The enhanced performance of PCIe SSDs results in faster boot times, quicker file transfers, and better system responsiveness.

Choosing the Right PCIe SSD

When considering a PCIe SSD, several factors should be taken into account:

1. Form Factor

PCIe SSDs come in different form factors, including add-in cards and M.2 drives. Add-in cards fit into PCIe slots on the motherboard and may offer additional features such as cooling solutions. M.2 drives, on the other hand, connect directly to M.2 slots on the motherboard, making them suitable for systems with limited space.

2. Capacity

Capacity is an important consideration when selecting a PCIe SSD. Determine your storage needs based on the types of files and applications you use. PCIe SSDs are available in a range of capacities, from 250 GB to several terabytes. Choose an SSD that provides sufficient space for your requirements.

3. Speed and Performance

Examine the read and write speeds of the PCIe SSD. Higher speeds result in better performance, but they may also come with a higher price tag. Balance your need for speed with your budget to find the best SSD for your needs.

4. Price

PCIe SSDs can be more expensive than SATA SSDs and hard drives. Consider your budget and weigh the benefits of faster performance against the cost. In some cases, a smaller capacity PCIe SSD paired with a larger SATA SSD can offer a good balance of speed and affordability.

5. Brand and Warranty

Choose a reputable brand known for reliability and quality. Check the warranty provided with the PCIe SSD, as a longer warranty can offer additional peace of mind regarding the longevity of your storage solution.

Conclusion

PCIe SSDs offer significant advantages over traditional storage solutions, including superior speed, reduced latency, and improved reliability. The card edge connector plays a crucial role in the performance of PCIe SSDs by ensuring stable electrical connections and secure physical attachment. While PCIe SSDs may come at a higher price point, their performance benefits make them a worthy investment for users with demanding storage needs.

Whether you’re a gamer, professional, or tech enthusiast, PCIe SSDs provide a compelling upgrade that can enhance your system’s performance and future-proof it against the growing demands of technology. By understanding the role of the card edge connector and evaluating the various factors involved, you can make an informed decision about whether a PCIe SSD is the right choice for your computing needs.

[flora-819]

What is PCIE slot

A PCIe (Peripheral Component Interconnect Express) slot is a high-speed interface on a computer's motherboard that allows you to connect expansion cards like graphics cards, network cards, or SSDs. It provides fast data transfer rates and supports various types of cards, enhancing your system's functionality and performance.

[flora-819]

Understanding PCIe and Card Edge Connectors: A Deep Dive into Modern Connectivity

Introduction

In the realm of computer hardware, the Peripheral Component Interconnect Express (PCIe) standard has become a cornerstone for connecting various components to the motherboard. This high-speed interface allows for the rapid transfer of data between the CPU and peripherals, such as graphics cards, SSDs, and network cards. A critical aspect of PCIe technology is the card edge connector, which serves as the physical interface for these components. This article will delve into the intricacies of PCIe technology, the significance of card edge connectors, and their impact on modern computing.

What is PCIe?

PCIe, or Peripheral Component Interconnect Express, is a high-speed interface standard used for connecting various hardware devices to a computer's motherboard. It was developed to replace the older PCI and PCI-X standards, which could not keep pace with the growing demands for data transfer speeds and bandwidth. PCIe provides a scalable, high-performance interface that can accommodate a wide range of devices, from simple expansion cards to complex graphics and storage solutions.

Key Features of PCIe

High Bandwidth: PCIe offers significantly higher bandwidth compared to its predecessors. Each lane in a PCIe connection can transfer data at rates of up to 1 GB/s per direction in PCIe 3.0, doubling to 2 GB/s in PCIe 4.0, and further increasing to 4 GB/s in PCIe 5.0.

Scalability: PCIe supports multiple lanes, allowing devices to operate over a single connection. A x1 connection has one lane, while a x16 connection utilizes sixteen lanes, making it ideal for high-performance devices like GPUs.

Low Latency: The architecture of PCIe minimizes latency, providing faster communication between the CPU and connected devices. This is particularly crucial for applications that require real-time data processing.

Compatibility: PCIe is backward and forward compatible, meaning that a newer PCIe device can operate in an older slot, and vice versa, although it will be limited to the speed of the slower interface.

The Role of Card Edge Connectors

At the heart of PCIe connectivity lies the card edge connector, a critical component that facilitates the physical connection between the PCIe card and the motherboard. The card edge connector is a type of electrical connector that allows a printed circuit board (PCB) to connect to another PCB, typically within a housing or slot.

Design and Structure

A card edge connector consists of multiple conductive pads arranged along the edge of a PCB. These pads make contact with corresponding pins in the PCIe slot on the motherboard. The design of the connector is crucial for ensuring a reliable connection, minimizing signal loss, and maintaining high data transfer speeds.

Contact Pads: The conductive pads are typically made from gold-plated copper to ensure good conductivity and resistance to corrosion. The arrangement of these pads determines the number of lanes available for data transfer.

Mechanical Features: The card edge connector often includes features like notches or guiding mechanisms to ensure proper alignment when inserting the card into the slot. This prevents damage to both the card and the motherboard.

Durability: Given that PCIe cards may be inserted and removed multiple times, the card edge connector must be designed to withstand wear and tear. High-quality materials and robust engineering are essential for longevity.

Types of Card Edge Connectors

While PCIe primarily uses the standard card edge connector, there are variations designed for specific applications or form factors. Some of these include:

Standard PCIe Connector: This is the most common type, used for full-size PCIe cards, including graphics cards, sound cards, and network interfaces.

Mini PCIe: Designed for compact devices, such as laptops and embedded systems, mini PCIe connectors are smaller and often used for Wi-Fi and cellular modules.

M.2 Connector: While not a traditional card edge connector, M.2 is a modern interface that uses a similar principle for SSDs and other devices. It offers a more compact form factor and supports both PCIe and SATA protocols.

Importance of Card Edge Connectors in PCIe

The card edge connector is indispensable in the PCIe ecosystem for several reasons:

Signal Integrity: The design and quality of the card edge connector directly impact signal integrity. High-quality connectors minimize crosstalk and electromagnetic interference, which is critical for maintaining high data transfer rates.

Ease of Use: The card edge connector allows for easy installation and removal of expansion cards. This user-friendly design has contributed to the popularity of PCIe in both consumer and enterprise markets.

Versatility: With the ability to support various devices, the card edge connector enables a broad range of applications, from gaming to data centers. This versatility has made PCIe the go-to standard for modern computing.

Future-Proofing: As technology evolves, the card edge connector continues to adapt. Newer PCIe standards, such as PCIe 5.0 and the upcoming PCIe 6.0, leverage the existing card edge connector design while providing increased bandwidth and performance.

The Evolution of PCIe and Card Edge Connectors

Since its introduction in the early 2000s, PCIe has undergone several iterations, each improving upon the last. The transition from PCIe 1.0 to PCIe 6.0 exemplifies the rapid advancement in data transfer technology.

PCIe Generations

PCIe 1.0: Released in 2003, PCIe 1.0 offered a maximum bandwidth of 2.5 GT/s (gigatransfers per second) per lane, equivalent to 250 MB/s.

PCIe 2.0: Launched in 2007, PCIe 2.0 doubled the bandwidth to 5 GT/s per lane, providing 500 MB/s.

PCIe 3.0: Introduced in 2010, PCIe 3.0 further increased the speed to 8 GT/s per lane, translating to 1 GB/s. This version also introduced improvements in encoding to enhance efficiency.

PCIe 4.0: Released in 2017, PCIe 4.0 doubled the bandwidth again to 16 GT/s per lane, allowing for 2 GB/s. This generation was crucial for supporting high-speed SSDs and next-gen GPUs.

PCIe 5.0: Launched in 2019, PCIe 5.0 maintained the same lane configuration but doubled the data rate to 32 GT/s, providing 4 GB/s. This was particularly beneficial for data centers and high-performance computing.

PCIe 6.0: Expected to be finalized in the near future, PCIe 6.0 aims to deliver 64 GT/s per lane, which would translate to an impressive 8 GB/s. This generation is poised to support the next wave of high-bandwidth applications, including AI, machine learning, and advanced gaming.

Impact on Card Edge Connectors

As PCIe technology has evolved, so too have the requirements for card edge connectors. The following considerations are vital for future developments:

Increased Density: As devices become more compact and powerful, card edge connectors must accommodate higher densities without sacrificing performance.

Thermal Management: High-performance devices generate significant heat. Card edge connectors must be designed to facilitate effective thermal management, ensuring longevity and reliability.

Emerging Technologies: With the rise of technologies like 5G, AI, and IoT, card edge connectors will need to adapt to support new applications and form factors.

Conclusion

The PCIe standard and its card edge connectors are integral to the performance and functionality of modern computing systems. As data transfer demands continue to rise, the evolution of PCIe and its associated connectors will remain pivotal in shaping the future of technology. Understanding the nuances of PCIe and the role of card edge connectors not only provides insights into current hardware capabilities but also prepares us for the innovations of tomorrow. Whether in gaming, data processing, or general computing, PCIe and its connectors will undoubtedly play a vital role in the ongoing evolution of technology.

[flora-819]

Armand Duplantis with the Yusuf Dikeç pose

[flora-819]

sundress

[flora-819]

Exploring PCIe Slots and Their Versatile Uses

Introduction

Peripheral Component Interconnect Express (PCIe) slots are integral to modern computing systems, serving as the interface for a wide array of expansion cards. The PCIe interface, known for its high-speed data transfer capabilities, has become a standard for connecting components and peripherals to a motherboard. This article explores the various applications of PCIe slots, focusing on their versatility and the types of expansion cards they support.

Understanding PCIe Slots

PCIe slots are designed to accommodate expansion cards through a card edge connector, a key feature that allows these cards to be inserted into the motherboard. This card edge connector consists of a series of metal contacts that align with corresponding pins in the PCIe slot, ensuring a stable electrical connection. PCIe slots come in different sizes and configurations, including x1, x4, x8, and x16, which denote the number of data lanes available for communication.

Types of Expansion Cards

Graphics Cards (GPUs) One of the most common uses for PCIe slots is to install graphics cards. These cards, often referred to as GPUs (Graphics Processing Units), are essential for rendering complex graphics and performing computational tasks. High-end gaming, video editing, and 3D rendering applications demand powerful GPUs, which are typically installed in x16 PCIe slots to leverage maximum bandwidth and performance.

Network Interface Cards (NICs) Network Interface Cards enhance a computer's connectivity by providing additional Ethernet ports or supporting advanced networking features. While most motherboards come with built-in Ethernet ports, dedicated NICs can offer higher speeds, better reliability, or additional networking functionalities, such as dual or quad-port configurations. These cards are commonly installed in x1 or x4 PCIe slots, depending on their performance requirements.

Storage Controllers PCIe slots are also used for installing storage controllers, including those for NVMe (Non-Volatile Memory Express) SSDs (Solid-State Drives). NVMe SSDs, which offer significantly faster data transfer speeds compared to traditional SATA SSDs, can be installed directly into M.2 slots on the motherboard or through dedicated PCIe expansion cards. These controllers are crucial for enhancing data storage performance in both consumer and enterprise systems.

Sound Cards For users requiring advanced audio capabilities, sound cards are a popular choice. While integrated audio solutions are sufficient for general use, dedicated sound cards can offer superior audio quality, support for surround sound, and enhanced audio processing features. These cards are typically installed in x1 PCIe slots and are favored by audiophiles and professionals in the music and film industries.

Capture Cards Capture cards are essential for video production, streaming, and gaming. They allow users to capture and record video from external sources, such as cameras, game consoles, or other media devices. Capture cards, which often require substantial bandwidth to handle high-definition video signals, are usually installed in x4 or x8 PCIe slots to ensure smooth operation and minimal latency.

RAID Controllers RAID (Redundant Array of Independent Disks) controllers manage multiple hard drives or SSDs to improve performance, increase storage capacity, or provide data redundancy. RAID controllers can be installed in PCIe slots to facilitate complex storage configurations, such as RAID 0, RAID 1, RAID 5, or RAID 10. These controllers are particularly valuable in server environments or for high-performance computing tasks.

USB Expansion Cards USB expansion cards add additional USB ports to a system, which can be useful for users who require more connectivity options than what is provided by the motherboard. These cards can offer USB 3.0, USB 3.1, or even USB-C ports, enhancing the versatility of a system’s connectivity options. Depending on the card’s design and the number of ports, they may be installed in x1 or x4 PCIe slots.

Wi-Fi and Bluetooth Cards While many motherboards now come with integrated Wi-Fi and Bluetooth, dedicated expansion cards can provide better connectivity options or support for newer standards. These cards are particularly useful in systems where integrated wireless capabilities are not available or where higher performance is desired. Typically, these cards are installed in x1 PCIe slots.

Additional PCIe Slots Expansion Cards For users with motherboards that have limited PCIe slots, expansion cards that provide additional PCIe slots can be installed. These cards effectively allow users to expand the number of available PCIe slots, enabling the installation of more expansion cards than the motherboard originally supports. These are generally used in high-performance workstations or servers where multiple cards are necessary.

Choosing the Right PCIe Slot

When selecting an expansion card, it’s essential to choose the appropriate PCIe slot based on the card’s bandwidth requirements and the slot’s size. For instance, high-performance GPUs and RAID controllers typically require x16 slots to fully utilize their capabilities. Conversely, NICs, sound cards, and USB expansion cards often function well in x1 slots.

Conclusion

PCIe slots, with their card edge connectors, provide a versatile platform for expanding the capabilities of a computer system. From enhancing graphics performance with GPUs to improving connectivity with network and USB cards, PCIe slots play a crucial role in modern computing. Understanding the different types of expansion cards and their corresponding PCIe slot requirements enables users to build or upgrade systems tailored to their specific needs, whether for gaming, professional work, or general computing.

[flora-819]

Understanding PCIe Slots: Which One is the Fastest?

When it comes to building or upgrading a computer, understanding the various components and their capabilities is crucial. One of the most significant components in modern computing is the PCIe (Peripheral Component Interconnect Express) slot. These slots are pivotal for connecting high-speed components like graphics cards, SSDs, and network cards. This article will delve into the intricacies of PCIe slots, particularly focusing on which slot is the fastest, the role of the card edge connector, and how to optimize your system's performance.

What is PCIe?

PCIe is a high-speed interface standard used for connecting various hardware components to a motherboard. It has largely replaced older standards like PCI and AGP due to its superior speed and efficiency. PCIe slots come in various sizes and configurations, namely x1, x4, x8, and x16, which refer to the number of lanes they have. Each lane consists of two pairs of wires, allowing for simultaneous data transmission in both directions.

PCIe Lanes and Bandwidth

The speed of a PCIe slot is primarily determined by the number of lanes it has. More lanes mean more data can be transferred simultaneously. Each lane in PCIe 3.0 can handle approximately 1 GB/s in each direction, while PCIe 4.0 doubles that to around 2 GB/s. PCIe 5.0, the latest standard as of this writing, pushes that figure to approximately 4 GB/s per lane.

Here’s a breakdown of the maximum theoretical bandwidth for different PCIe versions and lane configurations:

PCIe 3.0

x1: 1 GB/s

x4: 4 GB/s

x8: 8 GB/s

x16: 16 GB/s

PCIe 4.0

x1: 2 GB/s

x4: 8 GB/s

x8: 16 GB/s

x16: 32 GB/s

PCIe 5.0

x1: 4 GB/s

x4: 16 GB/s

x8: 32 GB/s

x16: 64 GB/s

From this data, it’s clear that the x16 slot is the fastest, provided it uses the latest PCIe version available on your motherboard.

The Role of the Card Edge Connector

The card edge connector is a crucial part of the PCIe architecture. It is the physical interface that allows a PCIe card (like a graphics card or NVMe SSD) to connect to the motherboard. The design of the card edge connector ensures that the electrical connections are secure and can handle high-speed data transfer.

Design and Functionality

A typical PCIe card edge connector features a series of gold-plated contacts along one edge of the card. These contacts align with the corresponding pins in the PCIe slot on the motherboard. The connector is designed to accommodate various card sizes and configurations, ensuring compatibility across different devices.

The card edge connector’s design allows for a robust connection that minimizes signal loss, which is crucial for maintaining high data transfer speeds. As technology advances, the design of these connectors continues to evolve, accommodating higher speeds and more complex functionalities.

Speed Comparison: Which PCIe Slot is Fastest?

As mentioned earlier, the x16 PCIe slot is the fastest among the various configurations. However, the actual performance you experience will depend on several factors:

PCIe Version: Using the latest version (currently PCIe 5.0) in an x16 slot will yield the highest speeds.

Device Capability: The connected device must also support high-speed communication. For example, a PCIe 3.0 graphics card will not utilize the full potential of a PCIe 4.0 or 5.0 slot.

Motherboard Limitations: Not all motherboards support the latest PCIe versions or fully utilize the available lanes. Always check the motherboard specifications for compatibility.

System Configuration: Other components in your system, such as the CPU and RAM, can also impact overall performance. A bottleneck in any part of the system can hinder the performance of high-speed PCIe devices.

Real-World Performance

In practical terms, while the x16 slot is the fastest, the performance gain may not always be noticeable in everyday tasks. For instance, if you are using a graphics card primarily for gaming, the difference between a PCIe 3.0 x16 and a PCIe 4.0 x16 slot may not be significant in many scenarios. However, for tasks that require heavy data throughput, such as video editing or 3D rendering, the higher bandwidth of PCIe 4.0 or 5.0 can provide a tangible performance boost.

Conclusion

In conclusion, the x16 PCIe slot is the fastest available, especially when paired with the latest PCIe versions. Understanding the role of the card edge connector is essential for ensuring optimal performance and compatibility between your hardware components. When upgrading or building a system, always consider the PCIe version, the capabilities of your devices, and the specifications of your motherboard.

By keeping these factors in mind, you can make informed decisions that will enhance your system's performance and longevity. Whether you’re a gamer, a content creator, or an enthusiast, leveraging the full potential of your PCIe slots can significantly improve your computing experience.

[flora-819]

PCIe Faster than PCI?

PCIe: A Leap Forward from PCI

The Peripheral Component Interconnect (PCI) standard has played a crucial role in the evolution of computer architecture since its introduction in the early 1990s. However, as technology advanced and the demand for higher data transfer rates and better bandwidth management increased, PCI was eventually succeeded by the more robust Peripheral Component Interconnect Express (PCIe) standard. This article explores the differences between PCI and PCIe, emphasizing the role of the card edge connector in this transition and why PCIe is significantly faster than its predecessor.

Understanding PCI and PCIe

PCI (Peripheral Component Interconnect) is a parallel interface standard that allows multiple hardware devices, such as graphics cards, sound cards, and network cards, to connect to a computer's motherboard. It operates on a shared bus architecture, meaning that all devices share the same data lines. This architecture limits the amount of data that can be transmitted simultaneously, leading to potential bottlenecks, especially as the number of devices increases.

In contrast, PCIe (Peripheral Component Interconnect Express) employs a serial communication protocol. Instead of sharing a single bus, PCIe establishes point-to-point connections between the motherboard and each device, allowing for dedicated communication channels. This fundamental shift in architecture is one of the primary reasons PCIe can achieve much higher speeds than PCI.

Speed and Bandwidth

When comparing PCI and PCIe, speed and bandwidth are the most significant differentiators. PCI operates at a maximum bandwidth of 133 MB/s per lane, with configurations typically using 32 or 64 bits. In contrast, PCIe operates with lanes that can handle 250 MB/s per lane in each direction for PCIe 1.0. The bandwidth increases significantly with each subsequent version of PCIe:

PCIe 1.0: 2.5 GT/s (Giga-transfers per second) per lane, resulting in 250 MB/s per lane.

PCIe 2.0: 5 GT/s per lane, doubling the bandwidth to 500 MB/s.

PCIe 3.0: 8 GT/s per lane, achieving roughly 1 GB/s per lane.

PCIe 4.0: 16 GT/s per lane, reaching approximately 2 GB/s.

PCIe 5.0: 32 GT/s per lane, achieving around 4 GB/s.

PCIe 6.0: The latest iteration, projected to reach 64 GT/s per lane, will allow for a theoretical maximum of 8 GB/s per lane.

This exponential growth in data throughput makes PCIe vastly superior to PCI, enabling modern applications such as high-performance gaming, data-intensive workloads, and real-time processing.

The Role of the Card Edge Connector

One of the critical components of both PCI and PCIe is the card edge connector. This connector serves as the interface between the expansion card and the motherboard, allowing for electrical and mechanical connections. The design and configuration of the card edge connector differ significantly between PCI and PCIe, impacting performance and compatibility.

Connector Design:

PCI Connectors: PCI cards typically feature a 120-pin connector that aligns with the 32-bit or 64-bit data bus. The design allows for a relatively straightforward connection but can limit performance due to the shared bandwidth.

PCIe Connectors: PCIe connectors come in various configurations, including x1, x4, x8, and x16. Each configuration corresponds to the number of lanes available for data transmission. For example, an x16 connector has 16 lanes, allowing for significantly higher bandwidth. The card edge connector for PCIe is more complex, with a greater number of pins (up to 164 for x16) to accommodate the increased data transmission capabilities.

Mechanical Features:

PCIe connectors are designed with a more robust mechanical structure, ensuring secure connections and better alignment. This improved design helps mitigate issues related to signal integrity, which can arise in high-speed data transmission.

Power Delivery:

PCIe connectors also provide enhanced power delivery options. While PCI typically delivers power through the motherboard, PCIe cards can draw additional power directly from the connector, allowing for more demanding devices, such as high-end graphics cards, to operate efficiently.

Advantages of PCIe Over PCI

The advantages of PCIe over PCI extend beyond speed and bandwidth. Here are some key benefits that PCIe offers:

Scalability:

PCIe's architecture allows for greater scalability. As technology evolves and new devices require more bandwidth, PCIe can accommodate these demands without significant redesigns. New versions of PCIe can be deployed without altering the physical connector, ensuring backward compatibility with older devices.

Reduced Latency:

The point-to-point connection in PCIe reduces latency compared to the shared bus architecture of PCI. Each device communicates directly with the CPU and memory, leading to faster data transfers and improved overall system performance.

Improved Resource Management:

PCIe’s architecture allows for better resource management, enabling the system to allocate bandwidth dynamically based on the needs of connected devices. This flexibility ensures that high-demand applications receive the resources they require without being hindered by other devices on the bus.

Enhanced Error Handling:

PCIe incorporates advanced error handling mechanisms, including error detection and correction features. This capability enhances data integrity and reliability, critical for applications where data loss or corruption cannot be tolerated.

Support for Multiple Devices:

PCIe's ability to support multiple devices simultaneously, each with its own dedicated bandwidth, is a significant advantage in modern computing environments. This feature is particularly beneficial for gaming, video editing, and data-intensive applications, where multiple high-performance devices may be in use at the same time.

Conclusion

The transition from PCI to PCIe marks a significant evolution in computer architecture. PCIe’s point-to-point architecture, enhanced bandwidth capabilities, improved card edge connector design, and superior resource management make it a far more efficient and powerful interface for modern computing needs. As technology continues to advance, PCIe will undoubtedly play a critical role in supporting the increasing demands for speed and performance in various applications.

In summary, PCIe is not just faster than PCI; it represents a paradigm shift in how devices communicate with the motherboard, paving the way for future innovations in computer technology. As we look ahead, it is clear that the card edge connector will continue to be a vital component in this ongoing evolution, enabling the seamless integration of ever more powerful devices into our computing systems.

[flora-819]

Can PCIe 3.0 Work in PCIe 2.0?

When it comes to computer hardware and technology, understanding the compatibility of different components is crucial for optimal performance. One common question that arises among enthusiasts and professionals alike is whether a PCIe 3.0 device can operate in a PCIe 2.0 slot. This question is particularly relevant as users look to upgrade their systems without replacing the entire motherboard. In this article, we will explore the compatibility between PCIe 3.0 and PCIe 2.0, focusing on the intricacies of card edges, bandwidth, and performance implications.

Understanding PCIe Versions

PCI Express (PCIe) is a high-speed interface standard used to connect various hardware components, such as graphics cards, SSDs, and network cards, to the motherboard. Over the years, PCIe has undergone several revisions, with each new version offering improved performance and features.

- **PCIe 1.0**: Launched in 2003, it offered a maximum throughput of 2.5 GT/s (gigatransfers per second) per lane.

- **PCIe 2.0**: Released in 2007, it doubled the bandwidth to 5 GT/s per lane.

- **PCIe 3.0**: Introduced in 2010, it further improved performance to 8 GT/s per lane.

Each version of PCIe is backward compatible, which means that a PCIe card designed for a newer version can operate in an older slot. However, this compatibility comes with some important considerations regarding performance and bandwidth.

2. PCIe Compatibility: Card Edge and Slot Design

The physical design of PCIe cards is standardized, allowing for different versions to fit into the same slots. A PCIe 3.0 card has a card edge that is compatible with PCIe 2.0 slots, meaning that you can physically insert a PCIe 3.0 device into a PCIe 2.0 slot without any issues.

3. Bandwidth Implications

The bandwidth of PCIe connections is crucial for determining how much data can be transmitted between the card and the motherboard. Here’s a quick breakdown of the bandwidth for different PCIe versions:

- **PCIe 2.0**: 5 GT/s per lane, translating to approximately 500 MB/s per lane.

- **PCIe 3.0**: 8 GT/s per lane, which equals about 1 GB/s per lane.

When a PCIe 3.0 card is placed in a PCIe 2.0 slot, the effective bandwidth is limited to that of PCIe 2.0. For instance, if you have a PCIe 3.0 x16 graphics card, it can theoretically provide up to 16 GB/s of bandwidth. However, when installed in a PCIe 2.0 x16 slot, the bandwidth drops to about 8 GB/s. This reduction can impact performance in data-intensive applications, such as gaming, video editing, or scientific simulations.

4. Performance Considerations

While PCIe 3.0 cards can work in PCIe 2.0 slots, the performance may not always be optimal. In many cases, the actual performance drop may not be as significant as one might think, depending on the specific application and workload. For example, a graphics card may not fully saturate the available bandwidth in a gaming scenario, meaning that the difference in performance may be negligible.

However, for high-performance applications that require maximum bandwidth — such as deep learning, data science, or high-resolution video editing — the limitations of PCIe 2.0 can become more pronounced. Users engaged in these activities may experience bottlenecks, leading to longer processing times and reduced efficiency.

5. Conclusion

In summary, PCIe 3.0 cards are indeed compatible with PCIe 2.0 slots, thanks to the standardized card edge design and backward compatibility of the PCIe standard. However, the performance of the PCIe 3.0 card will be limited to the capabilities of the PCIe 2.0 interface. Users should carefully consider their specific needs and workloads when deciding whether to upgrade their components or invest in a new motherboard to take full advantage of the latest PCIe technology.

By understanding the compatibility and performance implications of using PCIe 3.0 cards in PCIe 2.0 slots, users can make informed decisions that align with their computing requirements and budget constraints. Ultimately, whether you’re a gamer, a content creator, or a professional in need of high-speed data transfer, being aware of these technical details will help you optimize your system for the best possible performance.

Show more：https://www.dghoyato.com/index.phpkeyword=PCIE&submit=Search

contact us：sales08@dghoyato.com

[flora-819]

Are PCIe SSD’s worth it?

PCIe SSDs (or Solid-State Drives) are generally considered to be worth the investment if you’re looking for faster storage than what traditional hard drives can provide. This is because these drives not only offer higher read and write speeds, but they also have a smaller form factor and lower power consumption, making them an ideal choice for gaming laptops or other systems that need quick access to data.

When compared to SATA based drives, PCIe SSDs can offer up to 4x more bandwidth and dramatically shorter loading times when dealing with large media files or games. Additionally, their superior performance makes them suitable for high-end tasks such as video editing or 3D rendering where speed and reliability are essential.

However, this extra performance does come at a cost – PCIe SSDs are usually more expensive than their SATA counterparts due to their higher capacity and more advanced technology. If you’re on a budget, it may be better to go with a cheaper HD instead

[flora-819]

Are PCIe 3.0 and 4.0 compatible?

Are PCIe 3.0 and 4.0 Compatible?

In the world of computer hardware, the Peripheral Component Interconnect Express (PCIe) standard is a critical foundation for connecting various components, such as graphics cards, SSDs, and network cards. With the rapid evolution of technology, newer versions of PCIe have emerged, most notably PCIe 3.0 and PCIe 4.0. As users upgrade their systems, a common question arises: Are PCIe 3.0 and 4.0 compatible? In this article, we will explore the compatibility between these two versions, their key differences, and what it means for consumers and hardware manufacturers alike.

Understanding PCIe Versions

Before diving into compatibility, it's essential to understand what PCIe is and the differences between its versions. PCIe is a high-speed interface standard that allows components within a computer to communicate with one another. Each version of PCIe introduces improvements in bandwidth, speed, and efficiency.

PCIe 3.0: Released in 2010, PCIe 3.0 offers a maximum throughput of 8 GT/s (gigatransfers per second) per lane, translating to about 1 GB/s per lane in each direction. This version has been widely adopted across various hardware components, making it a standard in many systems.

PCIe 4.0: Launched in 2017, PCIe 4.0 doubles the bandwidth of its predecessor, achieving a maximum throughput of 16 GT/s per lane, or approximately 2 GB/s per lane in each direction. This increase in bandwidth is particularly beneficial for high-performance applications, such as gaming, data centers, and artificial intelligence workloads.

Compatibility Between PCIe 3.0 and 4.0

The good news for users is that PCIe 3.0 and PCIe 4.0 are designed to be backward and forward compatible. This means that a PCIe 4.0 device can operate in a PCIe 3.0 slot, and vice versa. However, there are several important points to consider regarding this compatibility:

Bandwidth Limitations: While a PCIe 4.0 device can function in a PCIe 3.0 slot, it will only operate at PCIe 3.0 speeds. For instance, if you install a PCIe 4.0 graphics card in a PCIe 3.0 motherboard, the card will still work, but its performance will be capped at the lower bandwidth of PCIe 3.0.

Physical Slot Design: The physical design of PCIe slots has not changed between versions 3.0 and 4.0. This means that both types of cards can fit into each other's slots without any issues. However, it is essential to check for other potential compatibility issues, such as power requirements and form factors.

Motherboard and Chipset Support: To take advantage of PCIe 4.0 speeds, both the motherboard and the CPU must support the PCIe 4.0 standard. If you have a motherboard that only supports PCIe 3.0, even if you install a PCIe 4.0 device, it will still operate at PCIe 3.0 speeds.

Future-Proofing: If you plan on upgrading your system in the future, investing in PCIe 4.0 components may be worthwhile, especially if you intend to use them in a future motherboard that supports the newer standard. This way, you can fully utilize the increased bandwidth and performance capabilities.

Real-World Implications

For consumers, the compatibility between PCIe 3.0 and 4.0 means that upgrading components does not necessarily require a complete system overhaul. Users can upgrade individual components, such as a graphics card or SSD, without worrying about whether they will work with their existing motherboard.

However, the performance implications should not be overlooked. Users engaged in high-performance computing tasks, such as gaming, video editing, or data analysis, may notice a significant difference when utilizing PCIe 4.0 devices in a compatible motherboard. Conversely, those using PCIe 3.0 devices for basic tasks may not experience any noticeable performance degradation.

Conclusion

In conclusion, PCIe 3.0 and 4.0 are compatible, allowing users to mix and match components as needed. While a PCIe 4.0 device will work in a PCIe 3.0 slot, it will be limited to the lower speeds of PCIe 3.0. Understanding these compatibility nuances is crucial for consumers looking to optimize their systems for current and future performance demands. As technology continues to advance, the adoption of PCIe 4.0 and beyond will undoubtedly shape the landscape of computer hardware, offering greater speeds and capabilities for a myriad of applications.

CONTACT US

email:sales08@dghoyato.com

[flora-819]

What is PCI-E?

PCI-E, or Peripheral Component Interconnect Express, is a high-speed expansion bus standard that is commonly used for connecting various hardware components to a computer's motherboard. It was developed by Intel in collaboration with other industry partners and was first introduced in 2004 as a replacement for the older PCI and AGP standards.

One of the key features of PCI-E is its high data transfer rates, which allow for faster communication between the CPU and peripheral devices such as graphics cards, network cards, storage devices, and other expansion cards. The standard supports multiple lanes, with each lane capable of transmitting data at speeds of up to 1GB/s in each direction. This allows for greater bandwidth and improved performance compared to older bus standards.

PCI-E also supports hot-swapping, which means that devices can be added or removed from the system without having to shut down the computer. This is particularly useful for servers and other mission-critical systems where downtime must be minimized.

The physical interface of a PCI-E card consists of a card edge connector that plugs into a slot on the motherboard. The card edge connector is a series of metal contacts that are arranged in a specific pattern to ensure proper alignment and connection with the slot. The connector is typically located on the bottom edge of the card and is inserted into the slot in a straight-in, straight-out motion.

There are several different types of PCI-E slots, each with a different number of lanes and corresponding data transfer rates. The most common types include x1, x4, x8, and x16 slots, with x16 being the largest and fastest. The number of lanes determines the maximum bandwidth that can be supported by the slot, with more lanes equating to higher data transfer rates.

In addition to the physical interface, PCI-E cards also have a set of electrical specifications that define how data is transmitted and received. These specifications ensure compatibility between different devices and help to prevent data errors and signal interference.

One of the key advantages of PCI-E is its scalability, which allows for easy expansion and upgrading of a computer system. Users can add additional cards to increase functionality or performance, such as adding a dedicated graphics card for gaming or a high-speed network card for faster internet connectivity.

Overall, PCI-E has become the standard for expansion bus interfaces in modern computers due to its high performance, scalability, and compatibility. It has enabled the development of faster and more powerful hardware components, leading to improved overall system performance and user experience.

In conclusion, PCI-E is a critical component of modern computer systems that enables high-speed communication between the CPU and peripheral devices. Its card edge connector design, high data transfer rates, and scalability make it an essential technology for powering today's advanced hardware components.

contact us:

email: sales08@dghoyato

[flora-819]

wrongly accused x2

[flora-819]

Advantages of PCIE produced by Chinese manufacturers

PCI Express (Peripheral Component Interconnect Express), commonly known as PCIe, is a high-speed interface standard for connecting various components in a computer system. It is widely used in modern desktops, laptops, servers, and other computing devices to enable high-speed data transfer between components such as graphics cards, network cards, storage devices, and more. PCIe technology has evolved over the years, offering increased bandwidth and improved performance compared to older interface standards like PCI and AGP.

Chinese manufacturers have been playing an increasingly important role in the production of PCIe components, offering a wide range of products that cater to the needs of different market segments. In this article, we will discuss the advantages of PCIe produced by Chinese manufacturers, highlighting the key features and benefits that make them a preferred choice for many customers.

Advantages of PCIe produced by Chinese manufacturers:

Cost-effective solutions: Chinese manufacturers are known for their ability to offer cost-effective solutions without compromising on quality. By leveraging their expertise in manufacturing and economies of scale, Chinese companies are able to produce PCIe components at competitive prices, making them an attractive option for customers looking to build high-performance computing systems on a budget.The chart compares one of AMP's products with that of Chinese manufacturer HOYATO.------AMP 649-18783-10100TLF vs.Hoyato PCIECP10-36GX. We can clearly find that there is little difference between the two products in the comparison of materials and various attributes of the products.What's more, most Chinese manufacturers have their own factories, so prices are more competitive.

Wide range of products: Chinese manufacturers offer a wide range of PCIe products to meet the diverse needs of customers. Whether you are looking for a basic PCIe x1 expansion card or a high-end PCIe x16 graphics card, Chinese manufacturers have you covered. They also offer specialized PCIe products for specific applications such as data storage, networking, and gaming, allowing customers to choose the right product for their requirements.

High-quality components: Despite their competitive pricing, PCIe components produced by Chinese manufacturers are known for their high quality and reliability. Chinese companies adhere to strict quality control standards and use advanced manufacturing processes to ensure that their products meet the highest industry standards. This commitment to quality has earned Chinese manufacturers a reputation for producing reliable and durable PCIe components that perform well under demanding conditions.

Cutting-edge technology: Chinese manufacturers are at the forefront of PCIe technology, continuously innovating and developing new products that push the boundaries of performance and efficiency. They invest heavily in research and development to stay ahead of the competition, resulting in PCIe components that offer the latest features and capabilities. Whether you need support for the latest PCIe Gen 4 or PCIe Gen 5 standards, Chinese manufacturers have the technology and expertise to deliver cutting-edge solutions.

Customization options: Chinese manufacturers offer customization options for PCIe components, allowing customers to tailor their products to meet specific requirements. Whether you need a custom form factor, specialized features, or unique specifications, Chinese companies can work with you to develop a bespoke PCIe solution that fits your needs perfectly. This flexibility and willingness to collaborate with customers set Chinese manufacturers apart and make them a preferred choice for businesses and individuals seeking personalized PCIe solutions.

Strong supply chain: Chinese manufacturers benefit from a robust supply chain that enables them to source high-quality components and materials at competitive prices. This streamlined supply chain allows Chinese companies to reduce lead times, lower production costs, and improve overall efficiency, resulting in faster delivery times and better value for customers. By leveraging their supply chain capabilities, Chinese manufacturers can offer PCIe components that are not only cost-effective but also readily available when you need them.

Global presence: Chinese manufacturers have a strong global presence, with products distributed and sold in markets around the world. This widespread availability makes it easy for customers to access Chinese-made PCIe components regardless of their location, ensuring that they can benefit from the advantages of Chinese manufacturing no matter where they are. Chinese manufacturers also have a reputation for providing excellent customer support and after-sales service, further enhancing their appeal to customers worldwide.

In conclusion, PCIe components produced by Chinese manufacturers offer a compelling combination of cost-effectiveness, quality, technology, customization, supply chain efficiency, and global availability. Whether you are a business looking to upgrade your computing infrastructure or an individual building a high-performance gaming rig, Chinese manufacturers have the PCIe solutions you need. With their commitment to innovation, quality, and customer satisfaction, Chinese manufacturers are poised to continue leading the way in PCIe technology for years to come.

email:sales08@dghoyato.com

References:

"PCI Express" - Wikipedia, https://en.wikipedia.org/wiki/PCI_Express

"PCIe Interface Card" - Advantech, https://www.advantech.com/products/pcie-interface-card/sub_1-2jk2h5

"Chinese PCIe Manufacturers" - Alibaba, https://www.alibaba.com/showroom/chinese-pcie-manufacturers.html

https://www.dghoyato.com/
